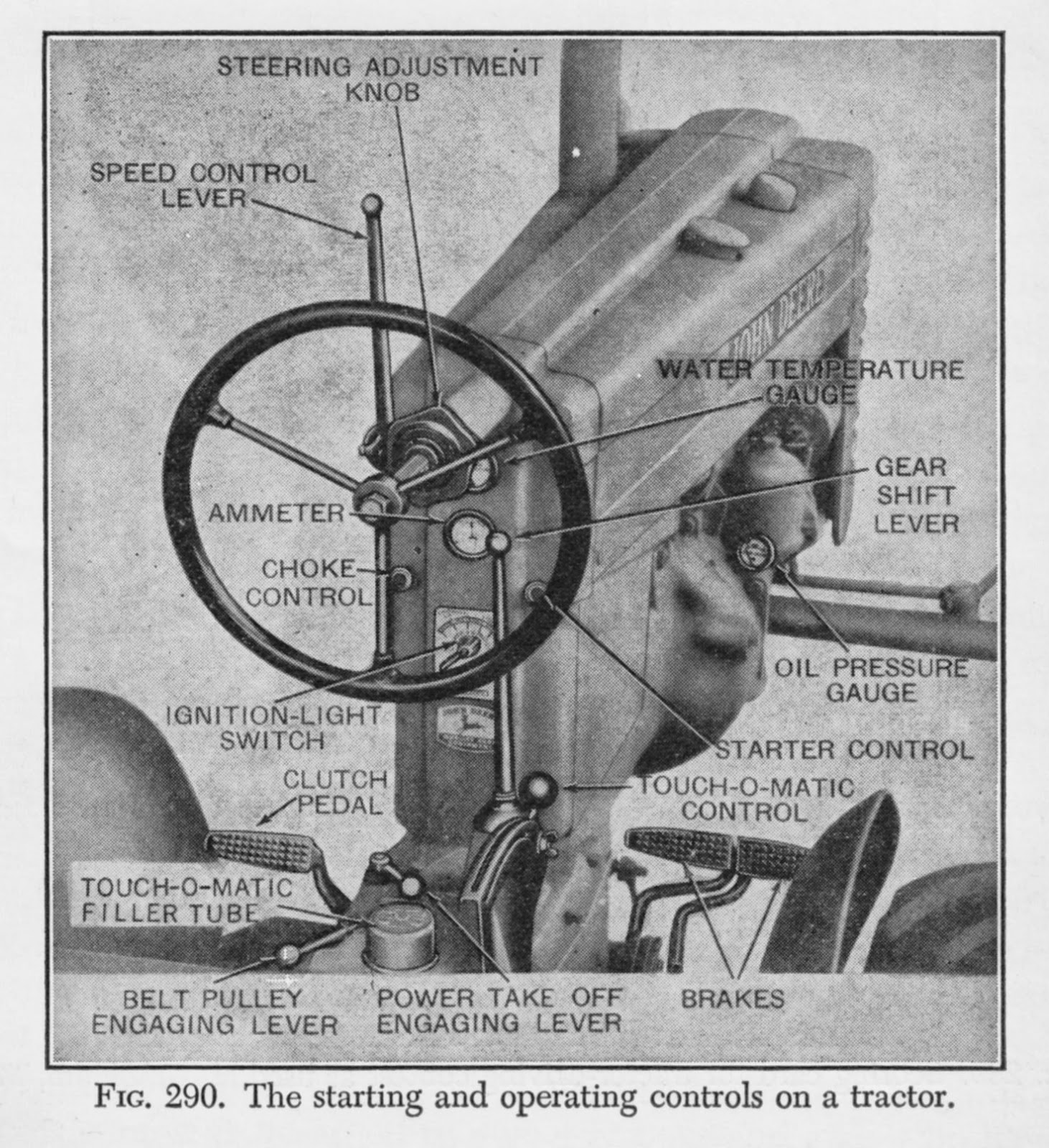

Controls for your 1950's John Deere Tractor

Harold E. Gulvin.  Farm Engines and Tractors.  McGraw-Hill Book Co., Inc., 1953.

The oil pressure gauge is awkwardly located!

1 comment:

Anonymous said...

I love this image. Those old tractors are just about the simplest possible mechanical construction. They are nearly just a seat mounted to the drive train. There is not even a chassis, in many cases.

The oil pressure gauge may be awkward to read, but it is the perfect location mechanically speaking. No leak-prone correcting pipe.

Thanks for posting this one!
